Leírás és Paraméterek
SCANIA SN7-HP
SCANIA SB7 RADIAL-HP

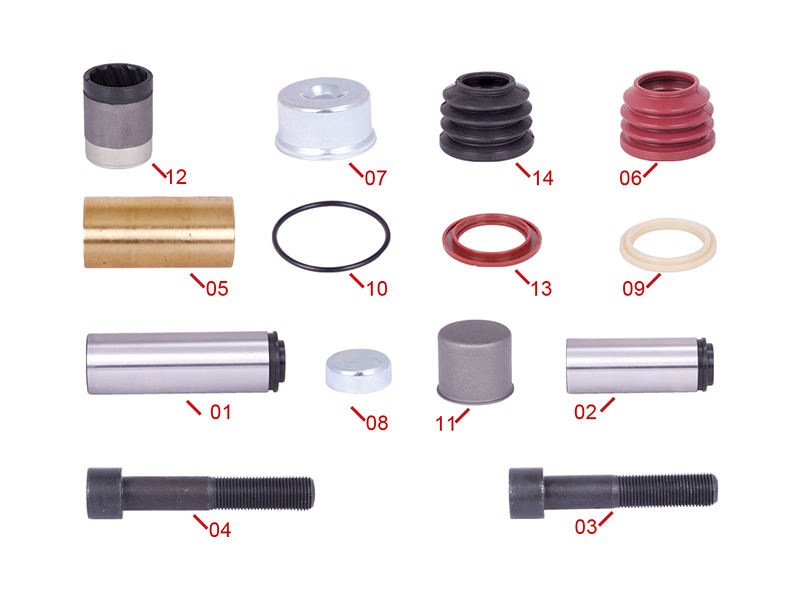

| 1. Guide Pin | Ø36 x 113,70 mm |
| 2. Guide Pin | Ø32 x 84 mm |
| 3. Bolt | M16 x 1,5 x 80 mm |
| 4. Bolt | M16 x 1,5 x 87 mm |
| 5. Bronze Bush | Ø40 x Ø36 x 82 mm |
| 6. Inner Boot | |
| 7. Steel Cap | Ø50 x 28 mm |
| 8. Steel Cap | Ø40 x 15 mm |
| 9. Inner Boot Ring | |
| 10. O-ring | |
| 11. Steel Cap | Ø42,5 x 37 mm |
| 12. Metal-Rubber Bush (short) | Ø39 mm (metal end) |
| 13. Inner Boot Ring | |
| 14. Inner Boot |
